Hydraulic system oil filter

Pipeline filter is used in the pipeline part of the hydraulic system. Pipeline filter is a filter involved in pipeline transportation process.

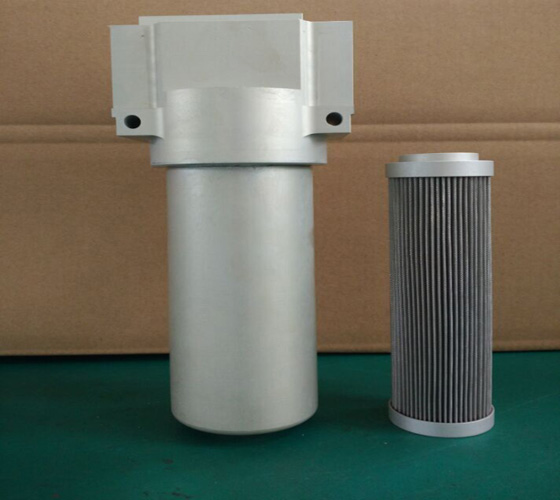

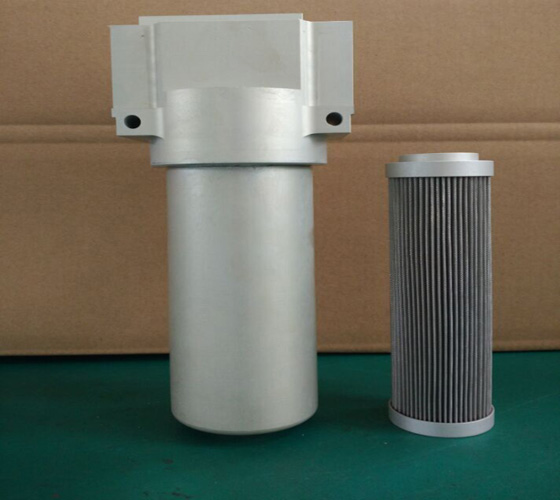

Pipeline filter is mainly composed of pipe, barrel, filter basket, flange, flange cover and fasteners. Installed on the pipeline can remove the large solid impurities in the fluid, so that the machine equipment (including compressor, pump, etc.), instrument can work and operate normally, to stabilize the process, ensure the role of safe production.

When the liquid enters the filter basket through the cylinder, the solid impurity particles are blocked in the filter basket, and the clean fluid is discharged through the filter basket and the outlet of the filter. When cleaning, unscrew the bottom plug of the main pipe, drain the fluid, remove the flange cover, and reload after cleaning. Therefore, it is very convenient to use and maintain.

In addition to the testing methods developed by our company, the filter element products also strictly follow the following international standards for testing

(1) ISO 2941 filter – Filter anti – rupture test method

(2) ISO 2942 filter – Hydraulic filter structural integrity test method

(3) ISO 2943 filter – Hydraulic filter material and liquid compatibility test method

(4) ISO 3723 filter – End conform test

(5) ISO 3724 filter – Determination of fatigue properties

(6) ISO 3968 filter – Differential pressure flow characteristics

(7) ISO 16889 filter element – Multiple pass method for the determination of filtration characteristics
