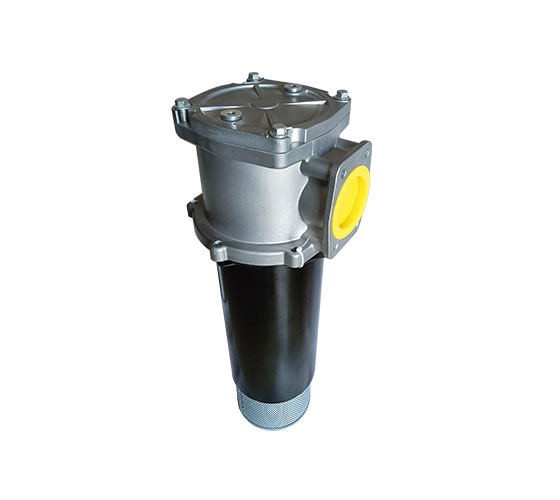

FRB Hydraulic Filter

  • Specification: Customizable
  • Origin: China
  • Filter accuracy: 5~30μm (customizable)
  • Rated flow: 16, 25, 40, 63, 100, 160, 250, 400, 630, 800, 1000L/min... (customizable)
  • Filtration medium: Hydraulic oil, etc.
  • Working pressure:0.1MPa~5MPa

Introduction

The return oil filter is used for the return oil fine filtration of the hydraulic system to remove the metal particles produced by the wear of the components in the hydraulic system and the rubber impurities of the seals, so as to keep the oil flowing back to the tank clean.

Features:

  1. It can be installed directly on the cover of the oil tank, or it can be installed by pipe.
  2. It is equipped with the filter element pollution clogs transmitteand the bypass valve, to improve the reliability of hydraulic system. When the oil feed pressure is 0.35 MPA caused by the factors that the filter is plugged or pollutants system liquid temperature is too low, or the flow pulsation, the transmission device has signalled instructions, the filter element should be timely replaced or raise the temperature, if these faults can not be dealed with by stopping the machine immediately, the bypass valve set on the filter element will open automatically (the opening pressure is 0.4MPA)
  3. The filter element is made of glass fiber material, it hasthe advantages of high filtration accuracy, large oil capacity, small original pressure loss, large amount of pollution, etc., its filtration accuracy is calibrated with absolute filtration accuracy, filtration ratio β3, β5, β10, β20≥200 filtration efficiency η≥ 99.5%. If paperlayer, stainless steel mesh, sintered felt and other filter elements are required, please specify.



Testing Standard

In addition to the testing methods developed by our company, the filter element products also strictly follow the following international standards for testing

(1) ISO 2941 filter – Filter anti – rupture test method

(2) ISO 2942 filter – Hydraulic filter structural integrity test method

(3) ISO 2943 filter – Hydraulic filter material and liquid compatibility test method

(4) ISO 3723 filter – End conform test

(5) ISO 3724 filter – Determination of fatigue properties

(6) ISO 3968 filter – Differential pressure flow characteristics

(7) ISO 16889 filter element – Multiple pass method for the determination of filtration characteristics

Our Service

  • Pre-sale Services: Enthusiasm

    24 hours' online service for the prompt reply.
  • Sale Services: Carefulness

    Our professional engineer team will provide you the satisfied scheme according to your demand.
  • After-sale Services: Faithfulness

    To establish long term friendship, we will regularly pay return visit to customers.

FAQ

Are you trading company or manufacturer?

We are manufacturer with our own factory.

Do you provide samples? Is it free or extra?

Yes,we could offer the sample for free charge, but do not pay the cost of freight.

How long is your delivery time?

Generally it is 2--3 days if the goods are in stock, or it is 10--12 days if the goods are not in stock, also according to the quantity you need.

What is the terms of payment?

Payment ≤ 2000USD, 100% in advance. Payment ≥ 2000USD, 30% T/T in advance, balance before shippment.
