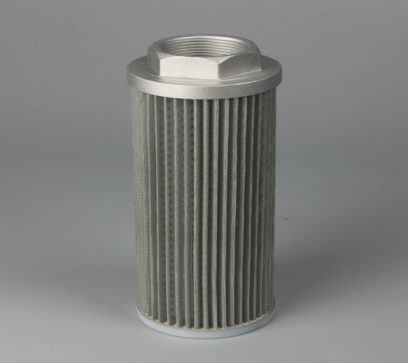

Filter element 1700R003ON

1700R003ON Hydraulic oil filter element can be used in a variety of oil systems, filter out the solid impurities from the external mixing or during the system operation, it is mainly installed on the oil absorption line, oil pressure line, the return line, bypass, separate filtration system. It can be used to protect the specific components of the hydraulic system, it is installed in the medium-pressure pipeline to protect the upstream components to filter out the solid particles and colloidal material, control the working medium pollution effectively, and make the components work normally. The hydraulic oil filter element is mainly made of stainless steel woven mesh, sintered mesh, iron mesh. Since the filter material are mainly glass filter paper, chemical fiber filter paper, wood pulp filter paper, so it has the characteristics of high concentricity rate, large pressure bearing, good straightness, stainless steel without any burrs, and can ensure long service life, its structure is made by the single or multi-layer metal mesh and filter material, its layers and wire mesh are based on the different conditions and usage in the specific use.

In addition to the testing methods developed by our company, the filter element products also strictly follow the following international standards for testing

(1) ISO 2941 filter – Filter anti – rupture test method
(2) ISO 2942 filter – Hydraulic filter structural integrity test method
(3) ISO 2943 filter – Hydraulic filter material and liquid compatibility test method
(4) ISO 3723 filter – End conform test
(5) ISO 3724 filter – Determination of fatigue properties
(6) ISO 3968 filter – Differential pressure flow characteristics
(7) ISO 16889 filter element – Multiple pass method for the determination of filtration characteristics
